JIEBO Instrument · 11 production models
Optical Emission Spectrometers and Elemental Analyzers
JIEBO Instrument manufactures 11 analytical instrument models across three families: spark optical emission spectrometers (OES), combustion-based elemental analyzers, and handheld XRF / LIBS guns. All built in Wuxi, China and shipped to 40+ countries.
Compare all 11 models at a glance
Headline specs for fast shortlisting. Click any model name for the full spec sheet and FAQ.
| Model | Family | Detector | Wavelength / range | Base matrices / elements | Weight |
|---|---|---|---|---|---|
| Exquis T4 Optical Emission Spectrometer | OES | CMOS, sealed argon | 160–580 nm | Fe / Al / Cu / Zn · 50+ elements | 33 kg |
| Exquis T4 Pro Optical Emission Spectrometer | OES | 4096-px CMOS, sealed argon | HEPS source, 100–1000 Hz | Fe / Al / Cu / Ni / Co / Mg / Ti / Zn / Pb / Sn / Ag + N, C, S, P, B, As | ≈47 kg |
| Innovate T5 Optical Emission Spectrometer | OES | Hamamatsu CMOS, vacuum | 140–680 nm | 10 base matrices | 78 kg |
| Noble T7 Optical Emission Spectrometer | OES | Research-grade CMOS, ±0.1 °C | 120–800 nm | 10 base matrices · <10 ppm | 160 kg |
| Surpass F1 Mobile Optical Emission Spectrometer | OES | Portable spark probe | 160–425 nm | UV: C / P / S / B / As / Sn / Se / N | 45 kg |
| CS2020 High-frequency Infrared Carbon & Sulfur Analyzer | Elemental | 4 IR cells, auto cleaning | IR — C/S | C/S: 0.00001 – 99.99 % | 110 kg |
| CS995 Carbon & Sulfur Analyzer | Elemental | 1 C + 1 S IR cell | IR — C/S | C: 0.0005 – 6 %; S: 0.0005 – 0.35 % | 115 kg |
| CS996 Carbon & Sulfur Analyzer | Elemental | Expandable IR cells | IR — C/S | C: 0.0001 – 10 %; S: 0.0001 – 2 % | 215 kg |
| ONH-508 Oxygen, Nitrogen & Hydrogen Analyzer | Elemental | NDIR + TCD | IR + TCD — O/N/H | O 0.5 ppm – 20 %; N 0.5 ppm – 50 %; H 0.2 ppm – 0.1 % | 160 kg |
| F6000 Pro Handheld XRF Analyzer | Handheld | Si-PIN X-ray, 50 kV | X-ray fluorescence | Ti to U (alloy ID) | Handheld |
| F7000 Pro Handheld LIBS Analyzer | Handheld | Class 3B laser plasma | LIBS broadband | Be, Mg, Al, Si, Ti, Cr, Mn, Fe, Ni, Cu … | 1.25 kg |
Optical Emission Spectrometers (5 models)

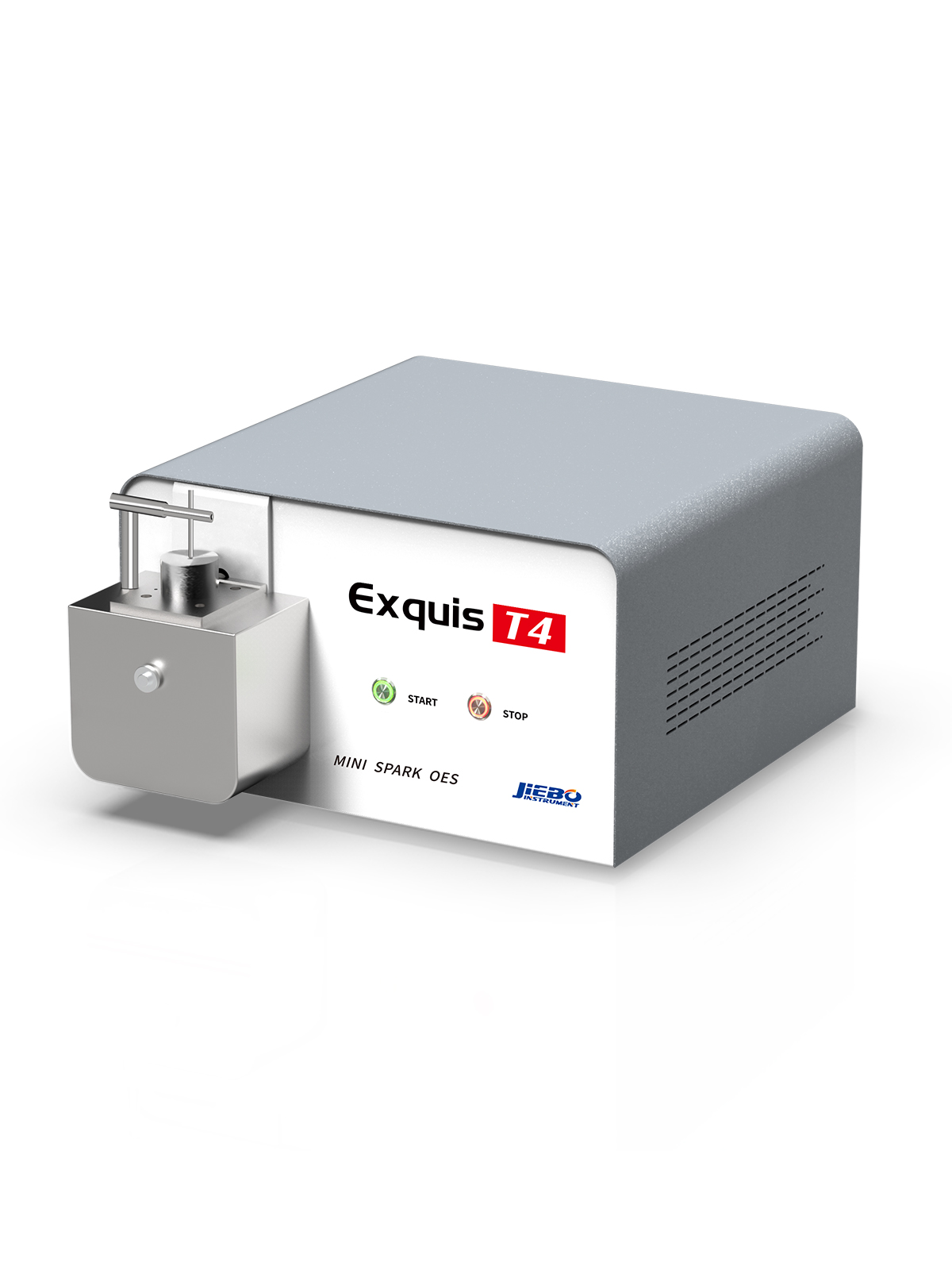

Exquis T4 Optical Emission Spectrometer
The Exquis T4 is a benchtop spark optical emission spectrometer with a sealed-cycle argon optical chamber that reduces gas consumption and stabilizes the light path. Its low-noise integrated CMOS detector covers 160–580 nm with high UV sensitivity for non-metallic elements (N, C, S, P), making it a price-performance choice for metal-fabrication shops moving sample analysis from lab to furnace site.
Exquis T4 Pro Optical Emission Spectrometer
The Exquis T4 Pro is the production mainstay of the T4 series: a benchtop spark OES built around a full-spectrum sealed-cycle argon optical chamber and a 4096-pixel low-noise CMOS array with direct deep-UV response — no coating needed for N, C, S, P, B and As. Its patented digital excitation source with high-energy pre-spark reaches 1000 Hz and auto-matches spark conditions to the matrix, while whole-chamber thermal control holds ±0.1 °C and cold start takes about 30 minutes

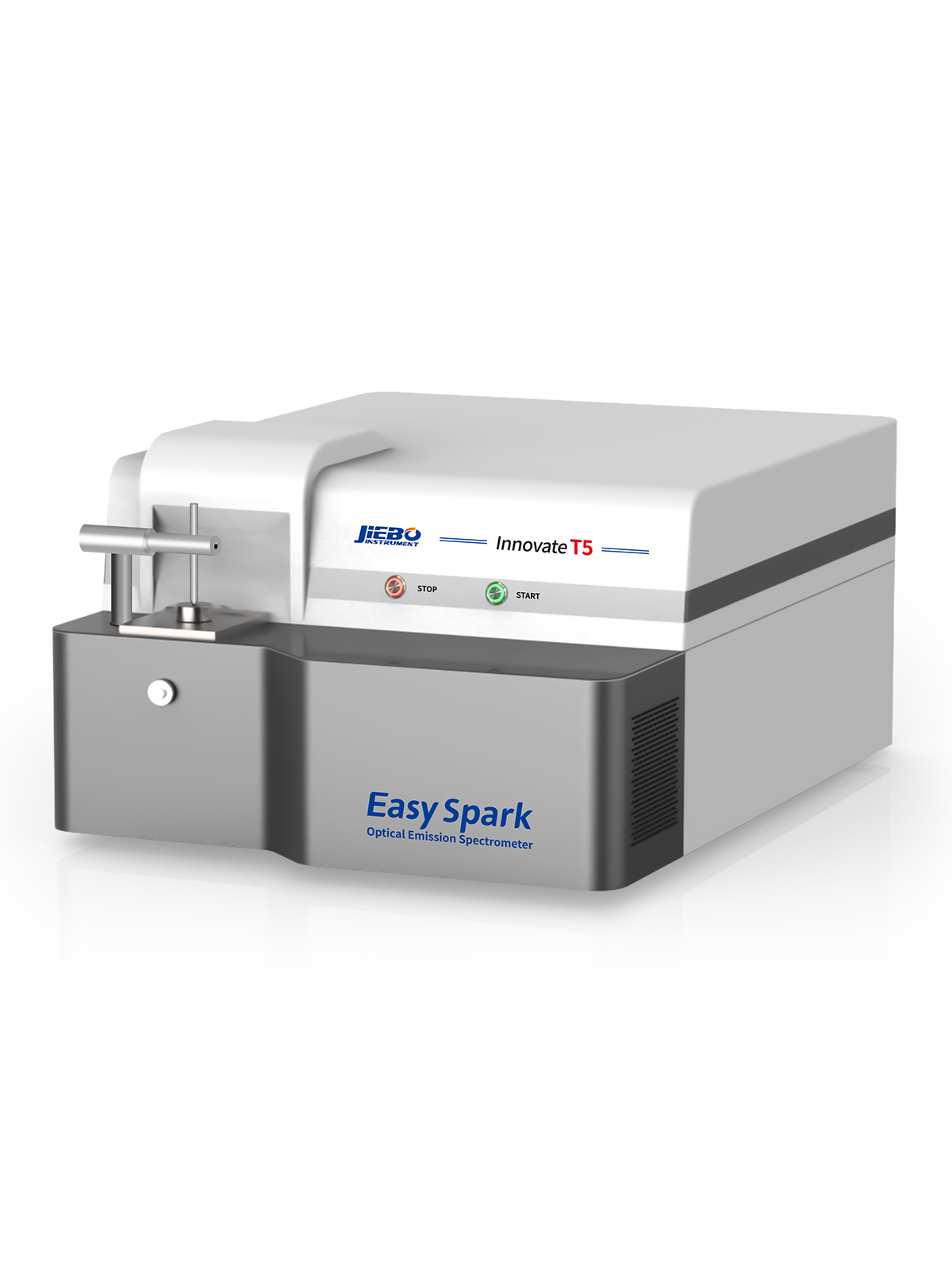

Innovate T5 Optical Emission Spectrometer
The Innovate T5 is a full-spectrum optical emission spectrometer with a vacuum optical chamber and all-digital programmable excitation source. It uses Hamamatsu CMOS detectors that combine the wide-spectrum coverage of CCD with the low detection limits of PMT for non-metallic elements (C, S, P, B), making it suitable for foundries, metallurgy labs, and metal-fabrication QC.

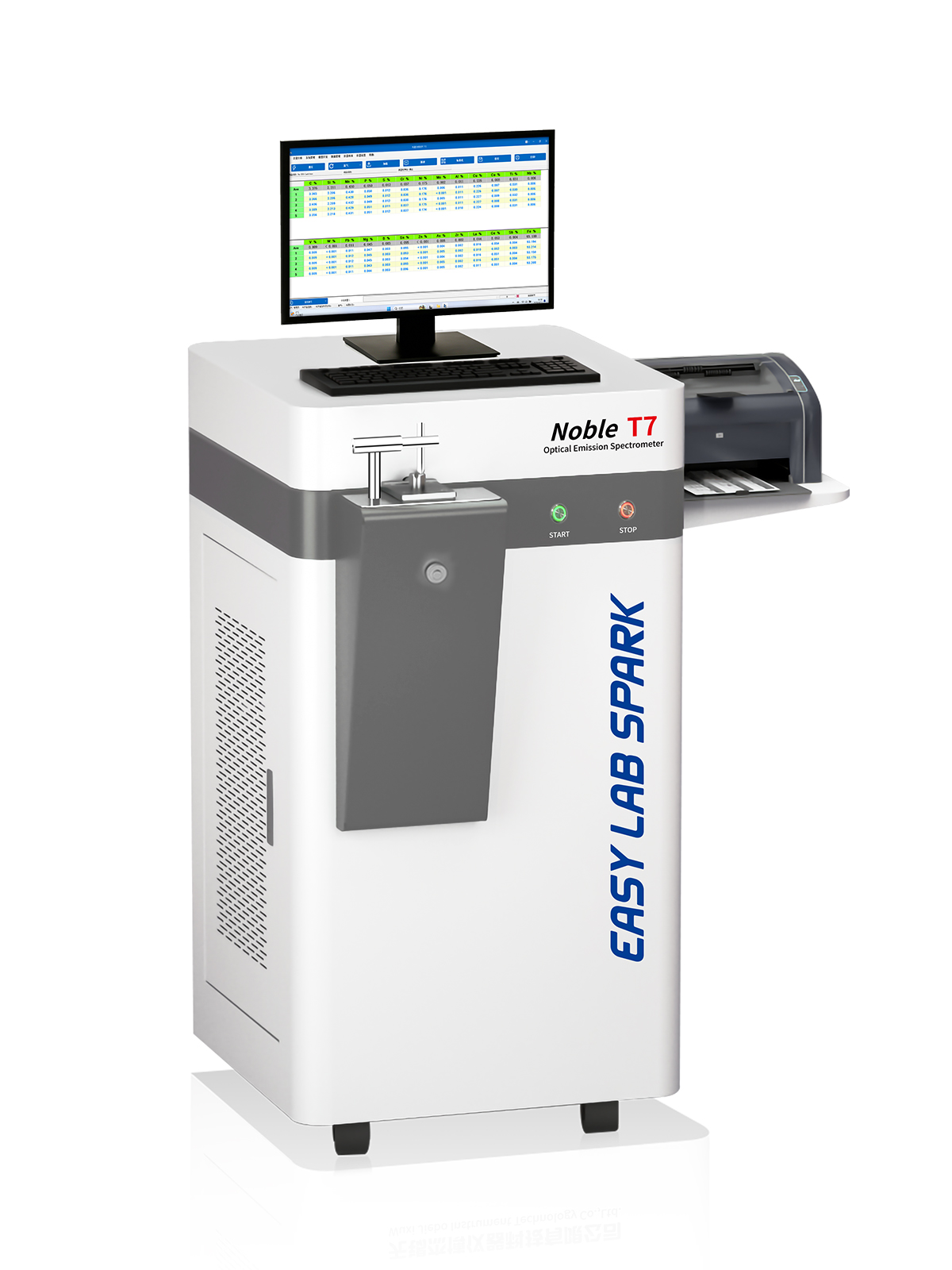

Noble T7 Optical Emission Spectrometer
The Noble T7 is a research-grade full-spectrum optical emission spectrometer for foundries, smelters and laboratories analyzing high volumes of solid metal samples. A constant-temperature optical chamber (±0.1 °C) holds spectral position stable for long shifts, and the wide 120–800 nm window covers trace elements down to single-digit ppm — useful for aerospace QA, new-material research and certification testing.

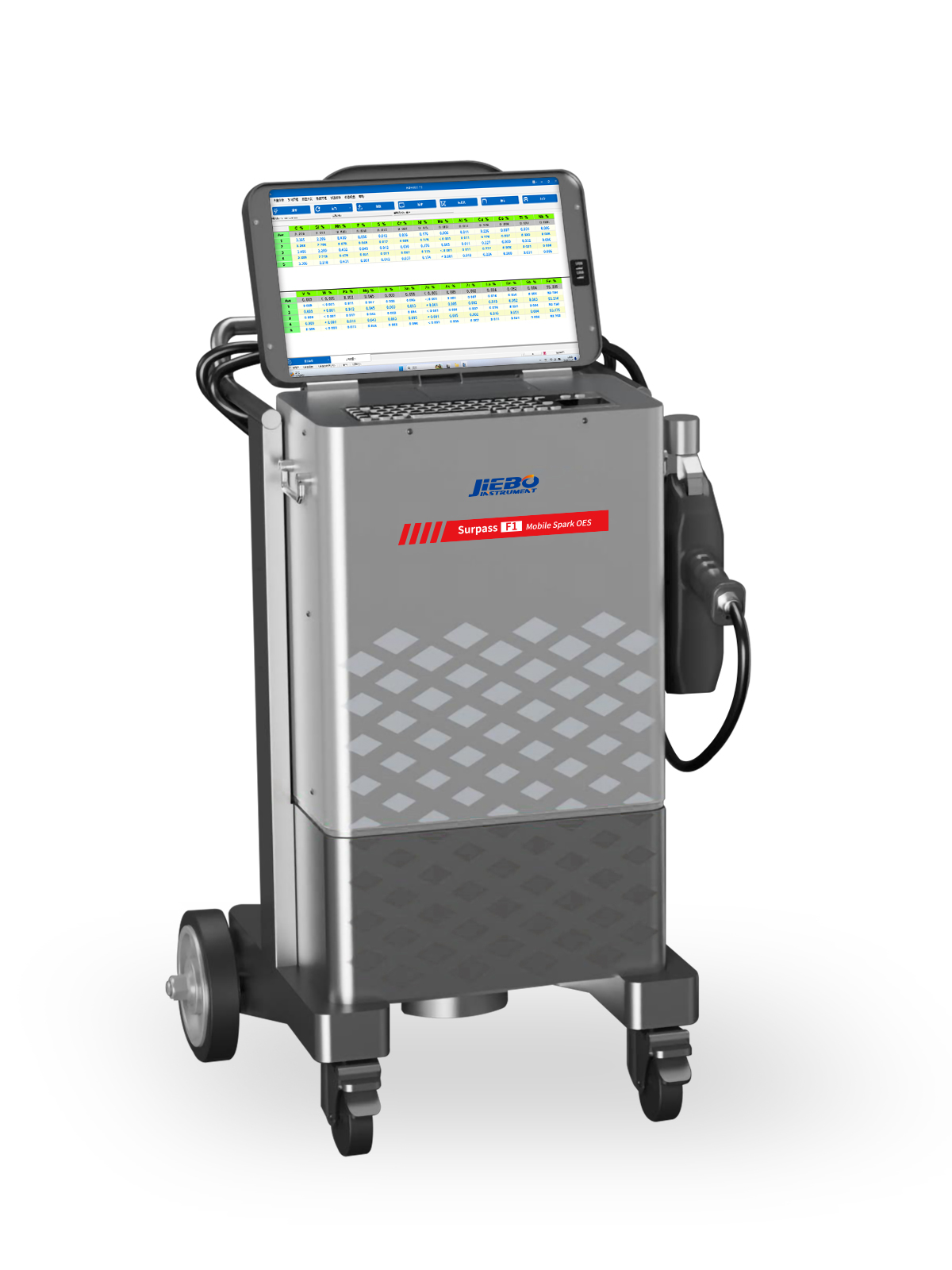

Surpass F1 Mobile Optical Emission Spectrometer
The Surpass F1 is a cart-mounted mobile spark optical emission spectrometer for on-site reliability testing of metal materials. With a built-in lithium battery and argon cylinder, it brings the analysis to large or fixed components that cannot be cut for the lab — scrap-yard incoming inspection, in-service pipework, reinforcing bars, and oversized castings.
Elemental Analyzers (4 models)

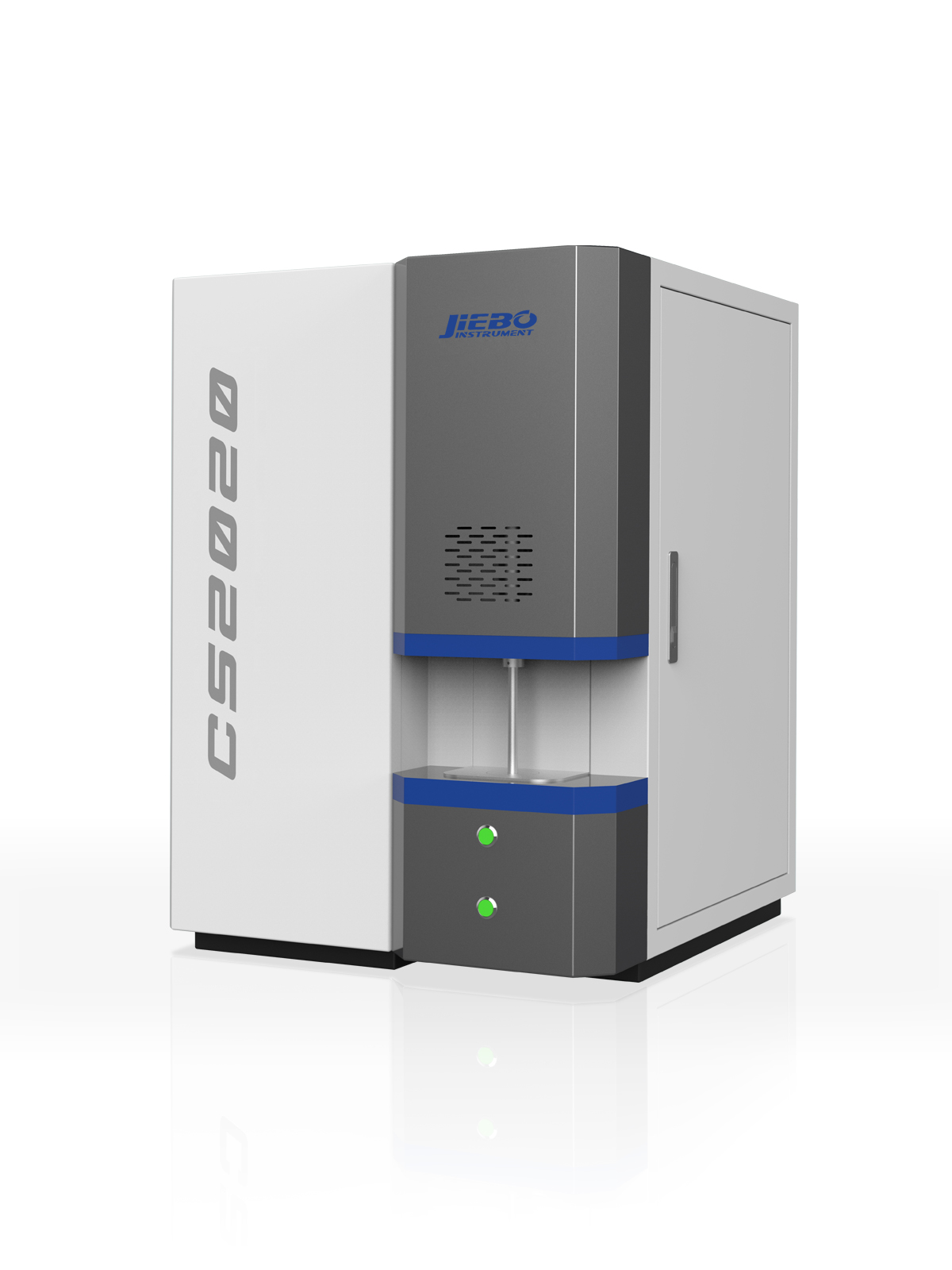

CS2020 High-frequency Infrared Carbon & Sulfur Analyzer
The CS2020 is a fully automated high-frequency infrared carbon and sulfur analyzer for steel, ores, finished metals and inorganic materials. Four physical detection cells cover low- and high-concentration ranges in one instrument

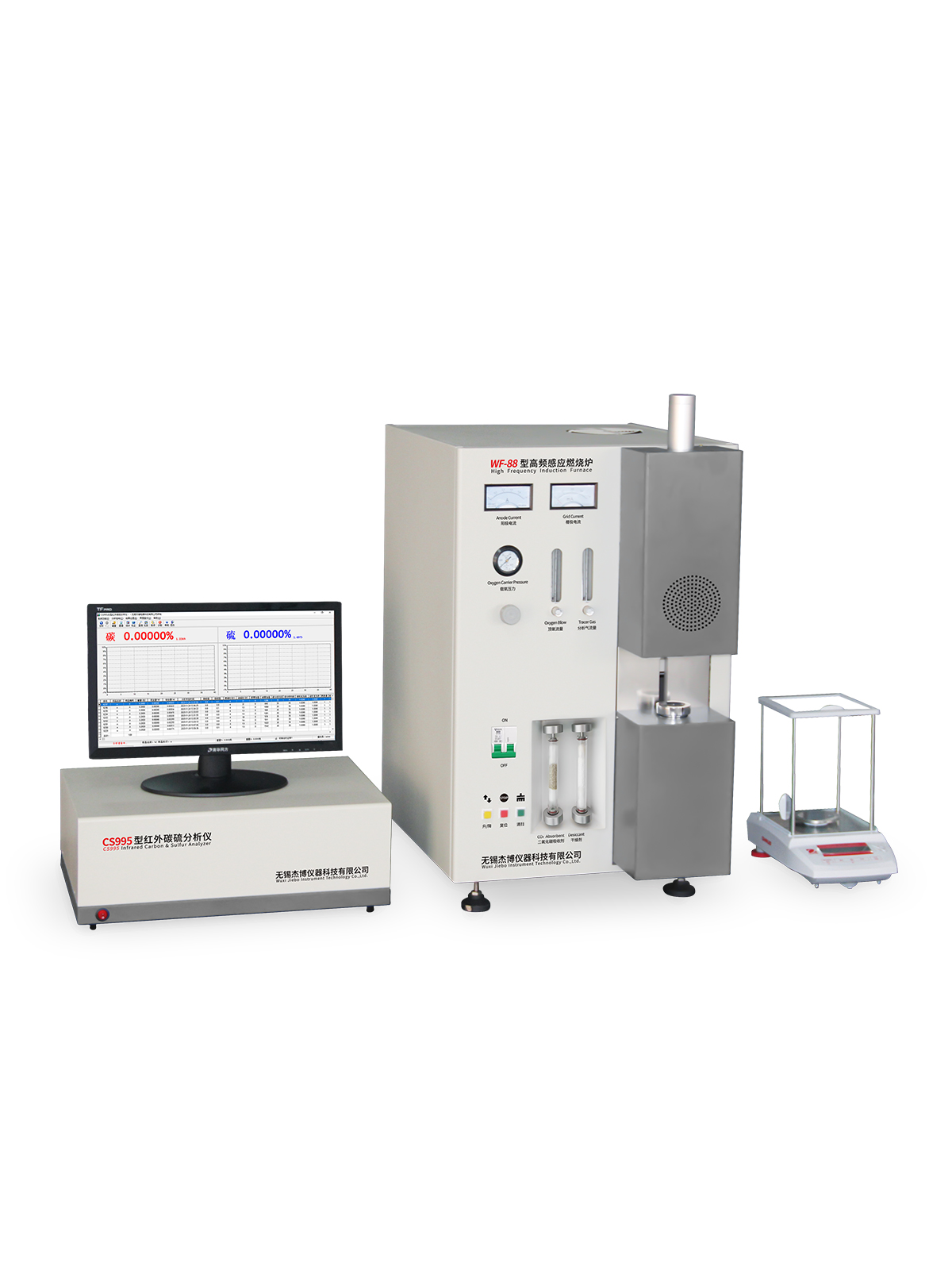

CS995 Carbon & Sulfur Analyzer
The CS995 is a bench-type high-frequency infrared carbon and sulfur analyzer with a separate bench-mounted detector and induction furnace. Designed for production-floor QC in foundries, steel mills and ferrous-alloy plants, it analyzes solid metals, ferro-alloys, ores, soils and titanium dioxide with reliable accuracy at a footprint that fits any QC bench.

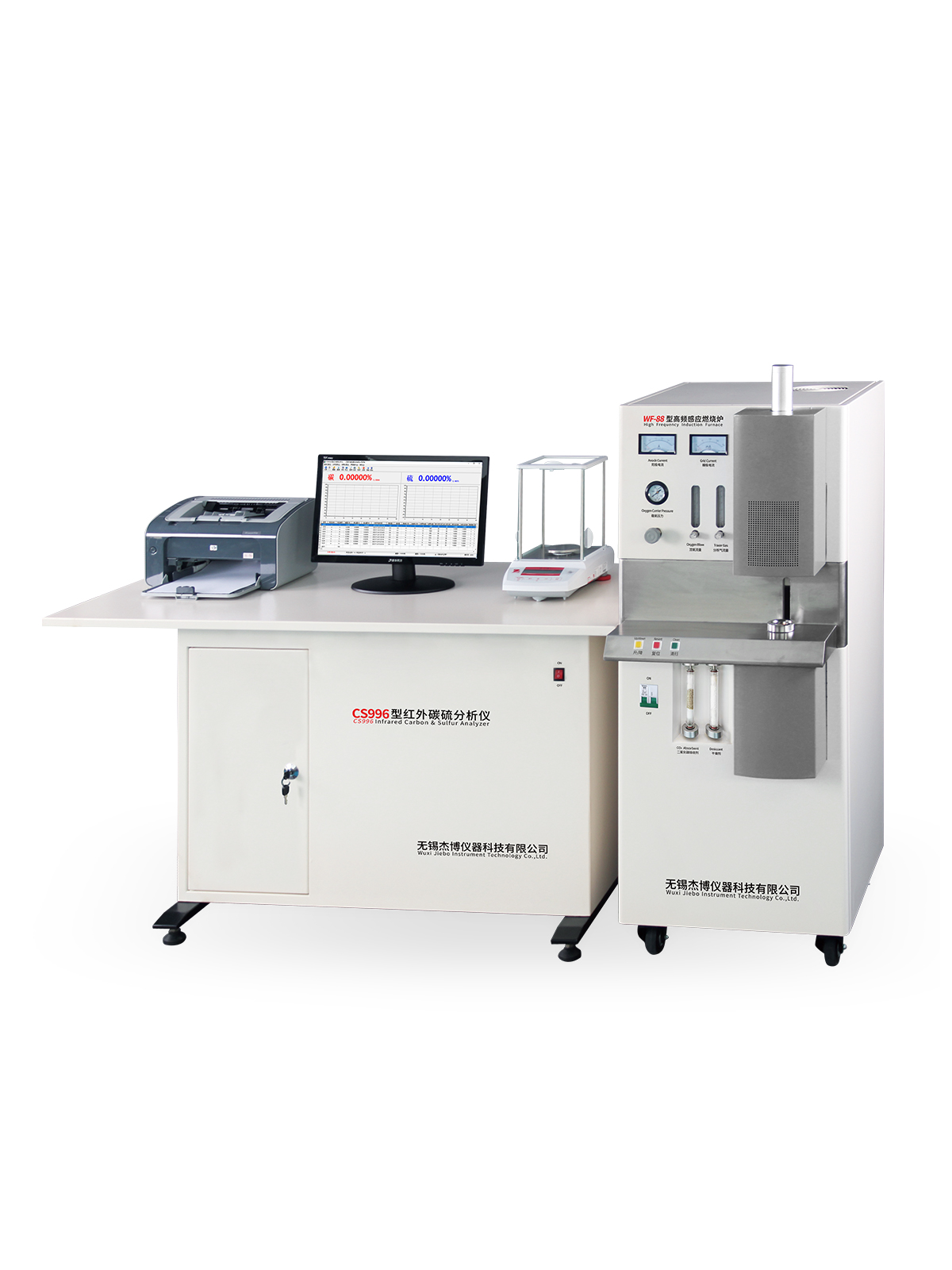

CS996 Carbon & Sulfur Analyzer
The CS996 is a floor-standing high-frequency infrared carbon and sulfur analyzer with an operating-table layout that integrates the detector, vertical furnace and balance in one workstation. Wider detection range (down to 0.0001 %) and expandable cells make it suited to plants running mixed-grade workloads — from ultra-low-carbon steel to high-carbon cast iron — on the same instrument.

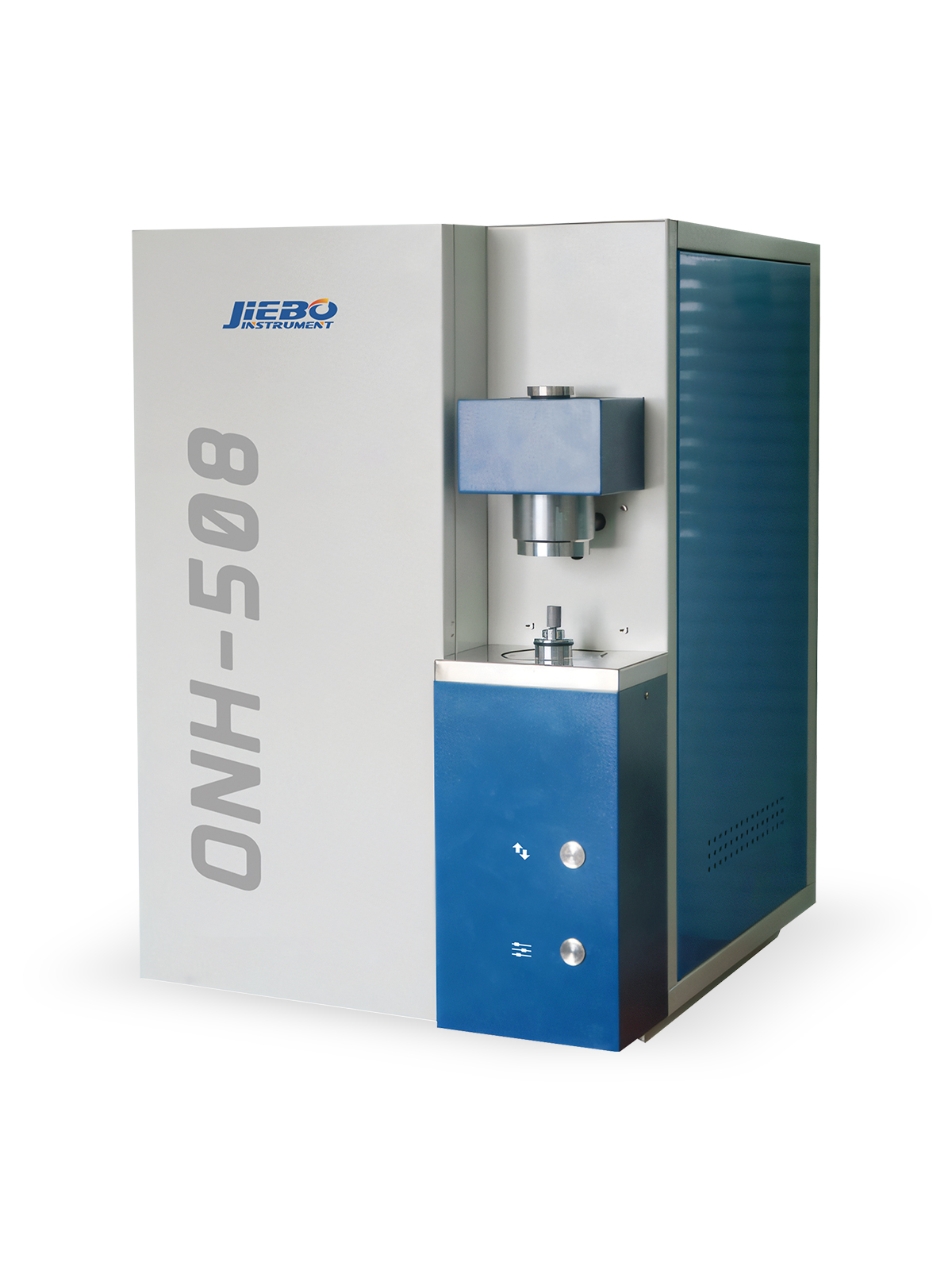

ONH-508 Oxygen, Nitrogen & Hydrogen Analyzer
The ONH-508 simultaneously analyzes oxygen, nitrogen and hydrogen in steel, rare earth alloys, copper, zirconium, titanium, ceramics and inorganic powders. It combines pyroelectric infrared detection (for O and H) with thermal-conductivity detection (for N) and uses inert-gas-fusion sample preparation in an electrode pulse furnace (up to 3000 °C, 1500 A).
Handheld Analyzers (2 models)

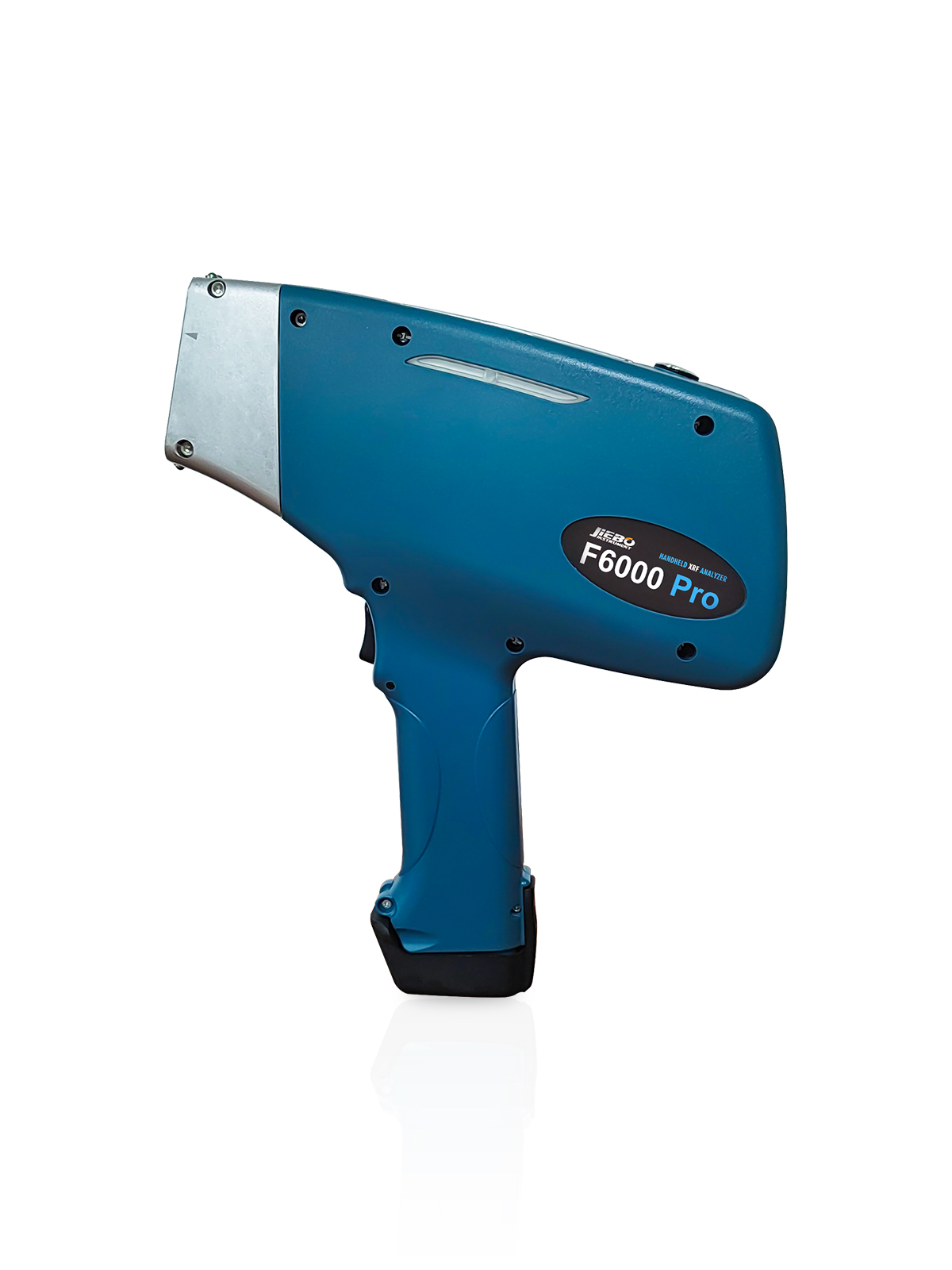

F6000 Pro Handheld XRF Analyzer
The F6000 Pro is a handheld X-ray fluorescence (XRF) analyzer for non-destructive identification of alloy grade and elemental composition. With a high-power 50 kV X-ray tube, six switchable collimation filters and a Si-PIN detector, it identifies elements from titanium to uranium in seconds — putting a "lab in your pocket" for scrap yards, pipework inspection and precious-metal verification.

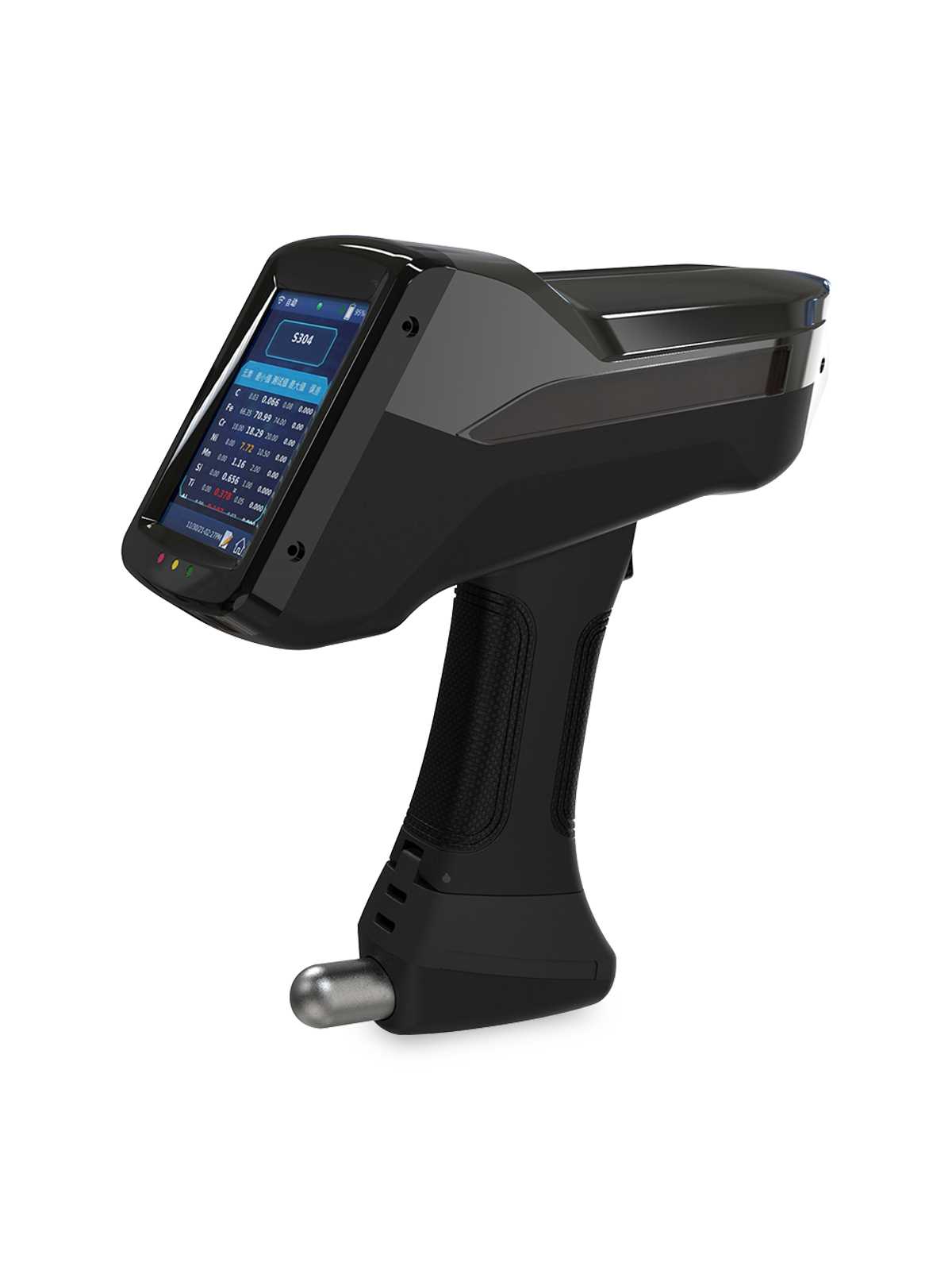

F7000 Pro Handheld LIBS Analyzer
The F7000 Pro is a handheld laser-induced breakdown spectroscopy (LIBS) analyzer for on-site identification and rapid analysis of alloy elements. Unlike X-ray-based handheld systems, LIBS uses a focused laser pulse to ablate a microscopic sample and read its emission spectrum — so it measures light elements that XRF cannot, including beryllium and magnesium, with no ionizing radiation.
How to choose the right JIEBO model
I need OES for a production foundry — which model?
Innovate T5 covers most production foundries (10 base matrices, vacuum chamber, 78 kg). Use Noble T7 if you need trace elements below 10 ppm or research-grade work. Use Exquis T4 if budget is tight and you only run one matrix.
I need on-site inspection without cutting samples.
Use F6000 Pro (XRF) for fast non-destructive grade ID without carbon. Use F7000 Pro (LIBS) when you need light elements (Mg, Si, Be) or want to avoid X-ray regulation. Use Surpass F1 (mobile OES) when carbon / sulfur quantification is required on site.
I need carbon and sulfur in steel or ore.
CS995 is the bench-type entry (115 kg, single C and S cell, 0.0005 % range). CS996 is floor-type with expandable cells (0.0001 % range). CS2020 is the high-end four-cell auto-cleaning unit for high-throughput labs.
I need oxygen, nitrogen and hydrogen analysis.
ONH-508 is the only model in this list that handles O / N / H simultaneously, using inert-gas fusion in an electrode pulse furnace. Common applications: titanium, zirconium, rare-earth alloys, deoxidized steel.
What lead times and warranties apply?
Stock OES and C/S configurations ship in 15 working days. Custom ONH-508 builds take 30 working days. All instruments carry a 12-month parts-and-labor warranty, extendable to 24 months.
