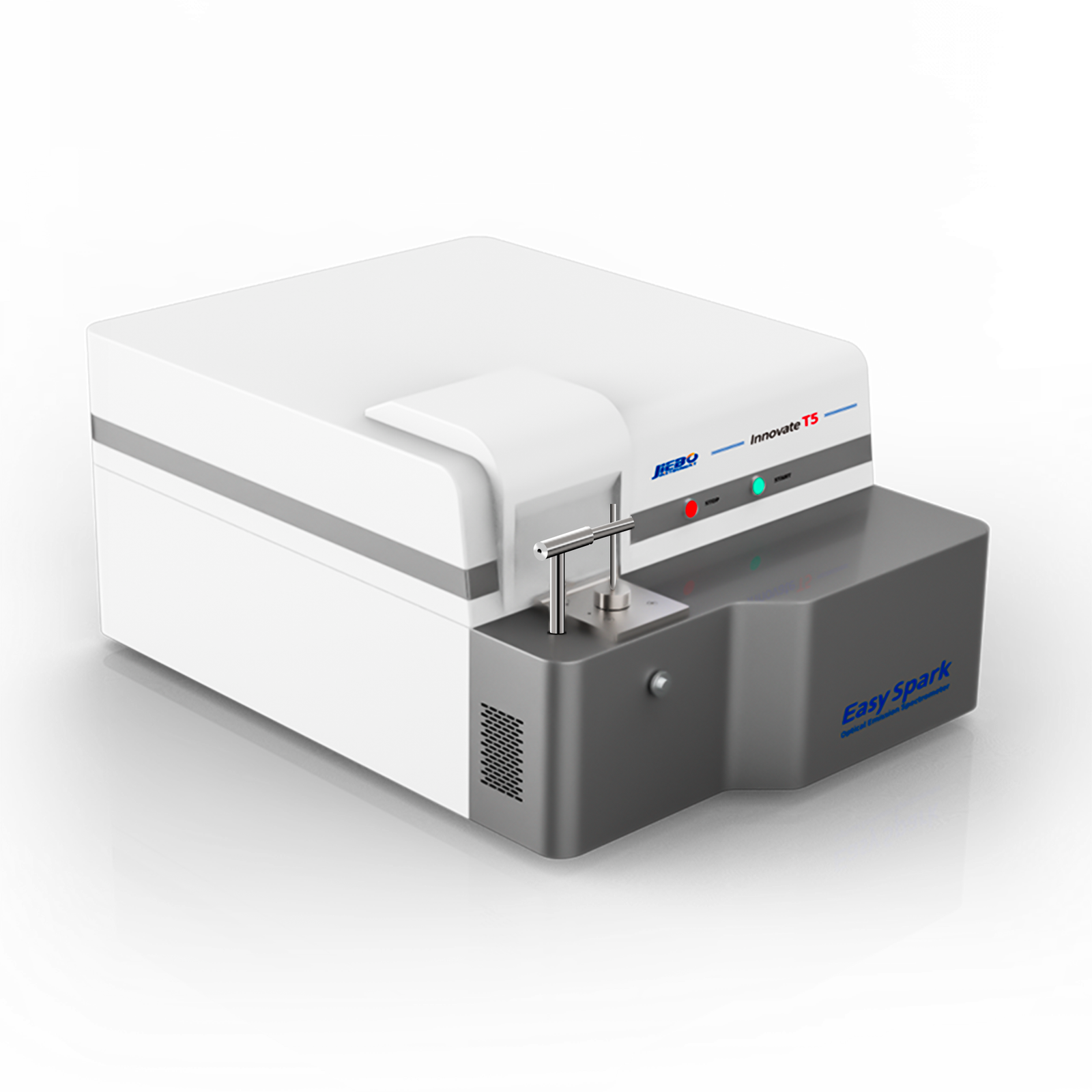

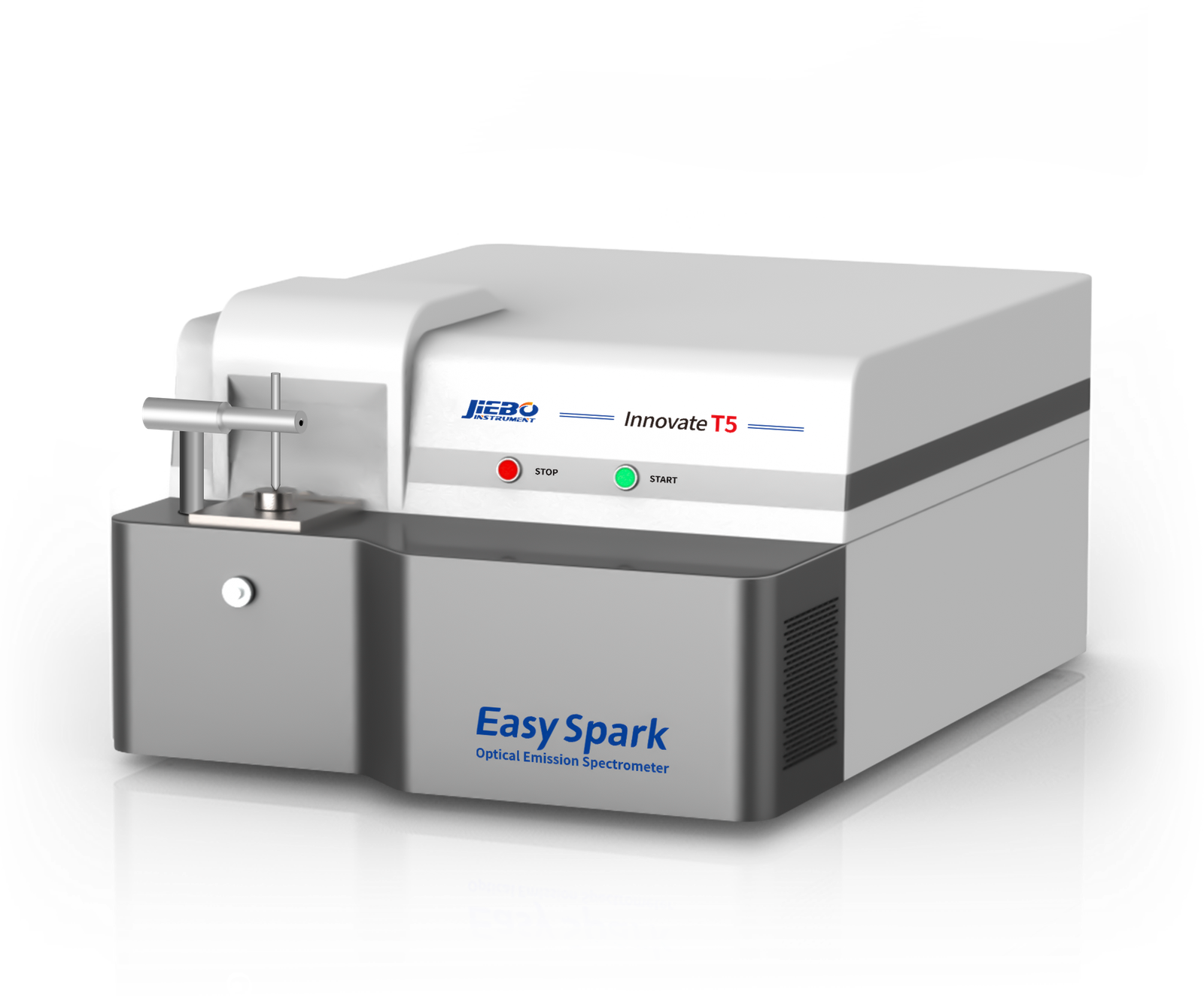

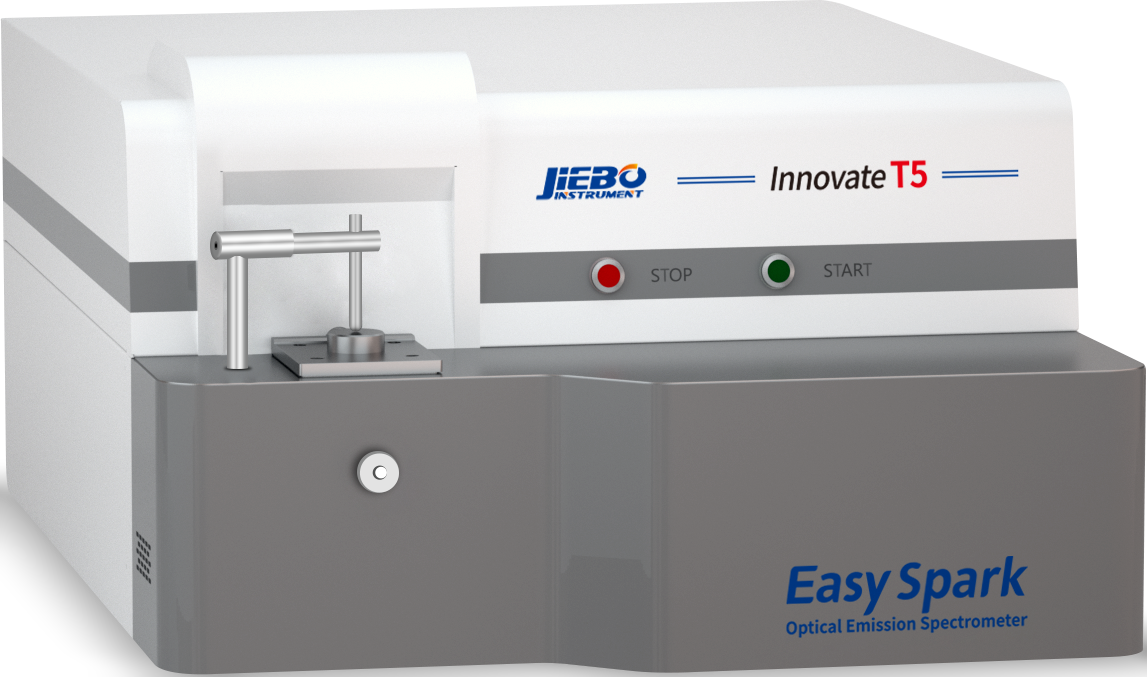

Product Overview
The JIEBO InnovateT5 represents a new generation of full spectrum atomic emission spectrometers engineered for laboratories and production environments that demand both analytical breadth and exceptional sensitivity. Built around a proven Paschen-Runge optical system paired with advanced CMOS full spectrum detection, the InnovateT5 delivers reliable, high-resolution elemental analysis across a wavelength range of 140 to 680 nm -- all within a compact benchtop footprint.
What sets the InnovateT5 apart is its ability to bridge a long-standing gap in optical emission spectroscopy. Traditional CCD-based instruments offer wide spectral coverage but sacrifice sensitivity at critical wavelengths. PMT-based systems deliver outstanding detection limits but are restricted to pre-selected analytical lines. The InnovateT5 eliminates this compromise entirely, combining the full-spectrum coverage of CCD technology with the signal-to-noise performance typically reserved for photomultiplier tube systems.
The vacuum light chamber and independent spark modulation per CMOS channel allow the InnovateT5 to analyze ultraviolet-sensitive elements -- including carbon, phosphorus, sulfur, and nitrogen -- without requiring specialized UV optical coatings. This dramatically reduces maintenance costs and long-term consumable spend while ensuring stable, accurate results from day one. Whether you are running incoming material verification, process control, or final product certification, the InnovateT5 is built to perform.
Key Features
Full Spectrum CMOS Detection with PMT-Level Sensitivity
The InnovateT5 employs a purpose-built CMOS array detector that captures the entire emission spectrum simultaneously. Through proprietary signal processing and independent channel modulation, it achieves detection limits and signal-to-noise ratios comparable to traditional PMT systems -- without sacrificing wavelength coverage.
Vacuum Optical Chamber for Deep UV Analysis
A fully evacuated light chamber eliminates atmospheric absorption in the deep ultraviolet region (140-200 nm), enabling direct measurement of critical non-metallic elements such as carbon, sulfur, phosphorus, and nitrogen. Unlike competing instruments, the InnovateT5 achieves this without UV-specific optical coatings, reducing maintenance burden and total cost of ownership.
Independent Spark Modulation per CMOS Channel
Each CMOS detector channel features its own independently controllable spark modulation parameters. This allows the instrument to optimize excitation conditions on a per-element basis during a single measurement cycle, maximizing analytical performance across the full periodic table without manual intervention.
High-Energy Digital Spark Source
The digitally controlled spark source delivers discharge frequencies up to 1000 Hz with a maximum current of 400A. Adjustable ignition pulse voltage (1-14 kV) and spark pulse voltage (20-230 V) provide the flexibility needed to handle everything from low-alloy steels to high-purity aluminum and copper-based alloys.
Paschen-Runge Optical Design
The Paschen-Runge mounting geometry provides superior wavelength dispersion and resolution across the full 140-680 nm range. This well-established optical architecture ensures long-term mechanical stability and consistent performance over thousands of analytical cycles.
Compact Benchtop Form Factor
At just 780 x 585 x 360 mm and 78 kg, the InnovateT5 fits comfortably on a standard laboratory bench or production floor workstation. Despite its compact size, it makes no compromises on analytical capability, making it an ideal choice for space-constrained environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Optical System | Paschen-Runge mounting with CMOS full spectrum detector |
| Light Chamber | Vacuum |
| Wavelength Range | 140 -- 680 nm |
| Discharge Frequency | Up to 1000 Hz |
| Maximum Discharge Current | 400 A |
| Ignition Pulse Voltage | 1 -- 14 kV |
| Spark Pulse Voltage | 20 -- 230 V |
| Argon Purity | 99.999% |
| Argon Inlet Pressure | 0.5 MPa |
| Argon Flow (Excitation) | 3.5 L/min |
| Argon Flow (Maintain) | 0.4 L/min |
| Argon Flow (Standby) | 0.1 L/min |
| Sample Hole Diameter | 13 mm |
| Dimensions (W x D x H) | 780 x 585 x 360 mm |
| Weight | 78 kg |
| Power Supply | 220 +/- 20V AC, 50 +/- 1 Hz |
Applications
Ferrous Metallurgy and Steelmaking -- Rapid analysis of carbon, silicon, manganese, phosphorus, sulfur, and trace alloying elements in carbon steels, stainless steels, tool steels, and cast irons.
Aluminum and Light Alloy Production -- Full compositional analysis of aluminum alloys including critical trace elements such as beryllium, lithium, and sodium at low concentration levels.
Copper and Copper Alloy Analysis -- Accurate determination of tin, lead, zinc, nickel, and other elements in brass, bronze, and high-conductivity copper grades.
Incoming Material Inspection -- Verify raw material certificates and detect material mix-ups before they enter your production process, reducing scrap rates and liability exposure.
Quality Assurance and Certification -- Generate the analytical data required for compliance with international material standards including ASTM, DIN, JIS, and GB specifications.
Automotive and Aerospace Component Manufacturing -- Support tight compositional tolerances required by OEM specifications for safety-critical structural and powertrain components.
Quality and Certifications
JIEBO spectrometers are designed and manufactured under a certified ISO 9001 quality management system. The InnovateT5 is built using precision-machined optical components and undergoes rigorous factory calibration and performance verification before shipment.
- ISO 9001 -- Quality Management System
- ISO 14001 -- Environmental Management System
- CE Marking -- European Conformity
- ROHS Compliant -- Restriction of Hazardous Substances
- SGS Certified -- Independent third-party verification
What's Included
- InnovateT5 spectrometer main unit
- Digital spark stand with electrode assembly
- Argon gas regulator and tubing kit
- Standard sample clamp
- Set of factory calibration reference samples
- Calibration certificate
- Power cable and grounding cable
- Instrument operation and maintenance manual
- Software installation media and license
- Starter kit of consumable electrodes
Video Demos
Innovate T5 Optical Emission Spectrometer
T5 Installed at Nortcast Foundry
Frequently Asked Questions
What types of materials can the InnovateT5 analyze?
The InnovateT5 is designed for the analysis of solid metallic samples including iron-based, aluminum-based, copper-based, nickel-based, cobalt-based, titanium-based, zinc-based, tin-based, lead-based, and magnesium-based alloys. It covers both major alloying elements and trace-level impurities across all standard alloy systems.
How does the InnovateT5 achieve PMT-level sensitivity with a CMOS detector?
The instrument uses independent spark modulation for each CMOS channel, allowing excitation parameters to be optimized on a per-element basis. Combined with the vacuum optical path and advanced signal processing algorithms, this approach achieves signal-to-noise ratios and detection limits that rival dedicated PMT channels for critical analytical lines.
Does the InnovateT5 require UV-coated optics for carbon, sulfur, or nitrogen analysis?
No. The vacuum light chamber eliminates atmospheric absorption in the deep UV region, and the CMOS detection system is inherently sensitive at these wavelengths. This removes the need for UV-specific optical coatings, which degrade over time and require periodic replacement in competing instruments.
What argon purity and consumption should I plan for?
The InnovateT5 requires 99.999% purity argon (5N grade). During active analysis, flow is approximately 3.5 L/min. In maintain mode between samples, flow drops to 0.4 L/min, and in standby mode the instrument consumes just 0.1 L/min. This three-tier flow management significantly reduces total argon consumption over an operating shift.
What is the required sample size?
Samples must present a flat surface capable of fully covering the 13 mm sample hole on the spark stand. Minimum recommended sample dimensions are approximately 15 x 15 mm with a thickness of at least 3 mm, though specific requirements may vary depending on alloy type and surface preparation.
Does JIEBO provide installation and training?
Yes. JIEBO offers professional on-site installation, commissioning, and operator training as part of the standard purchase package. Remote technical support and application assistance are also available. Contact our team at spectryeep.com/contact-us for details on service coverage in your region.
